- Drafted existing plans in Revit based on architectural documents
- Executed demolition plans using phases.
- Drafted renovation plans including the addition of a studio/garage.
- Designed a piece of custom furniture (coffee table and light fixture)
- Rendered a few 3D perspectives.

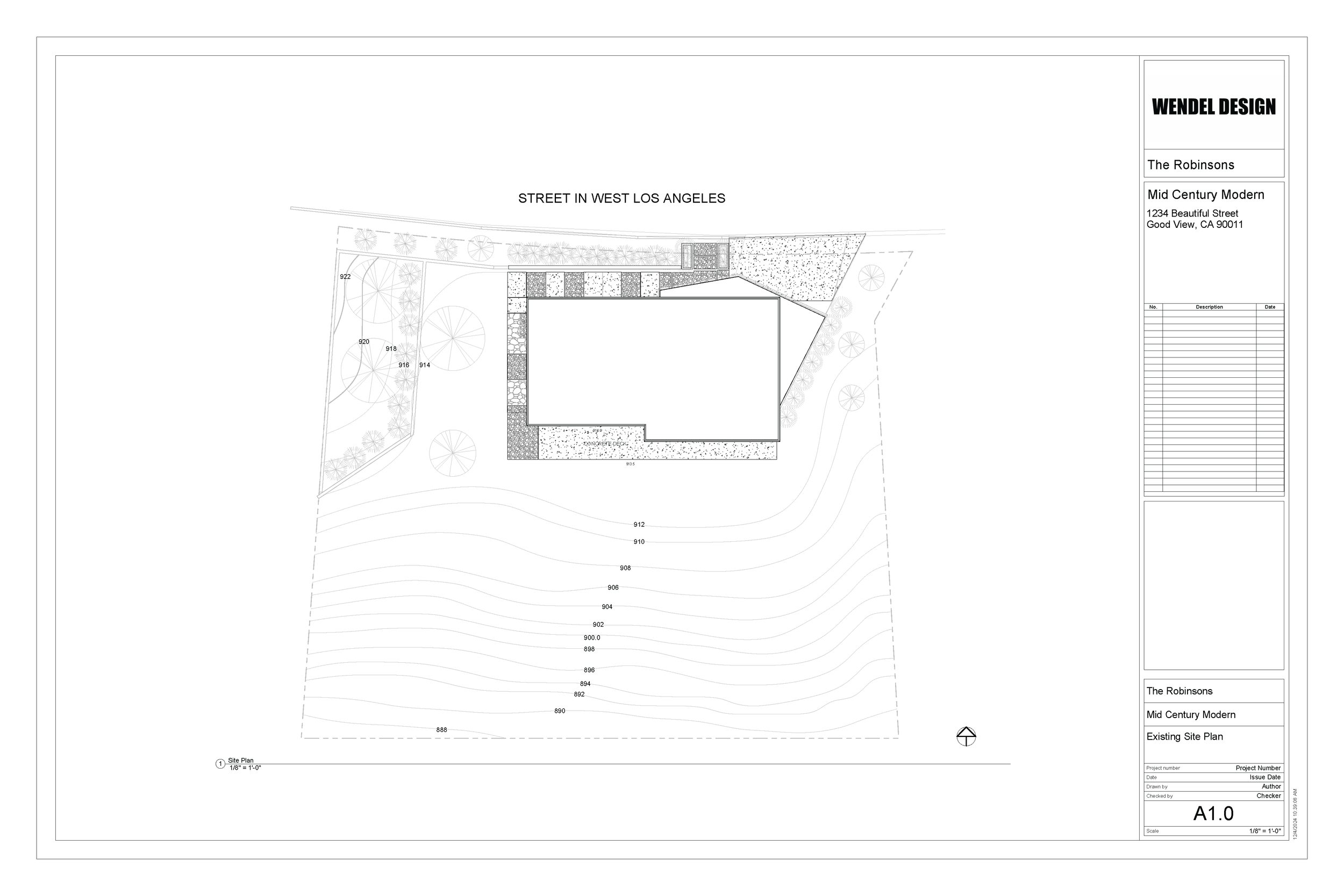

Existing Site Plan

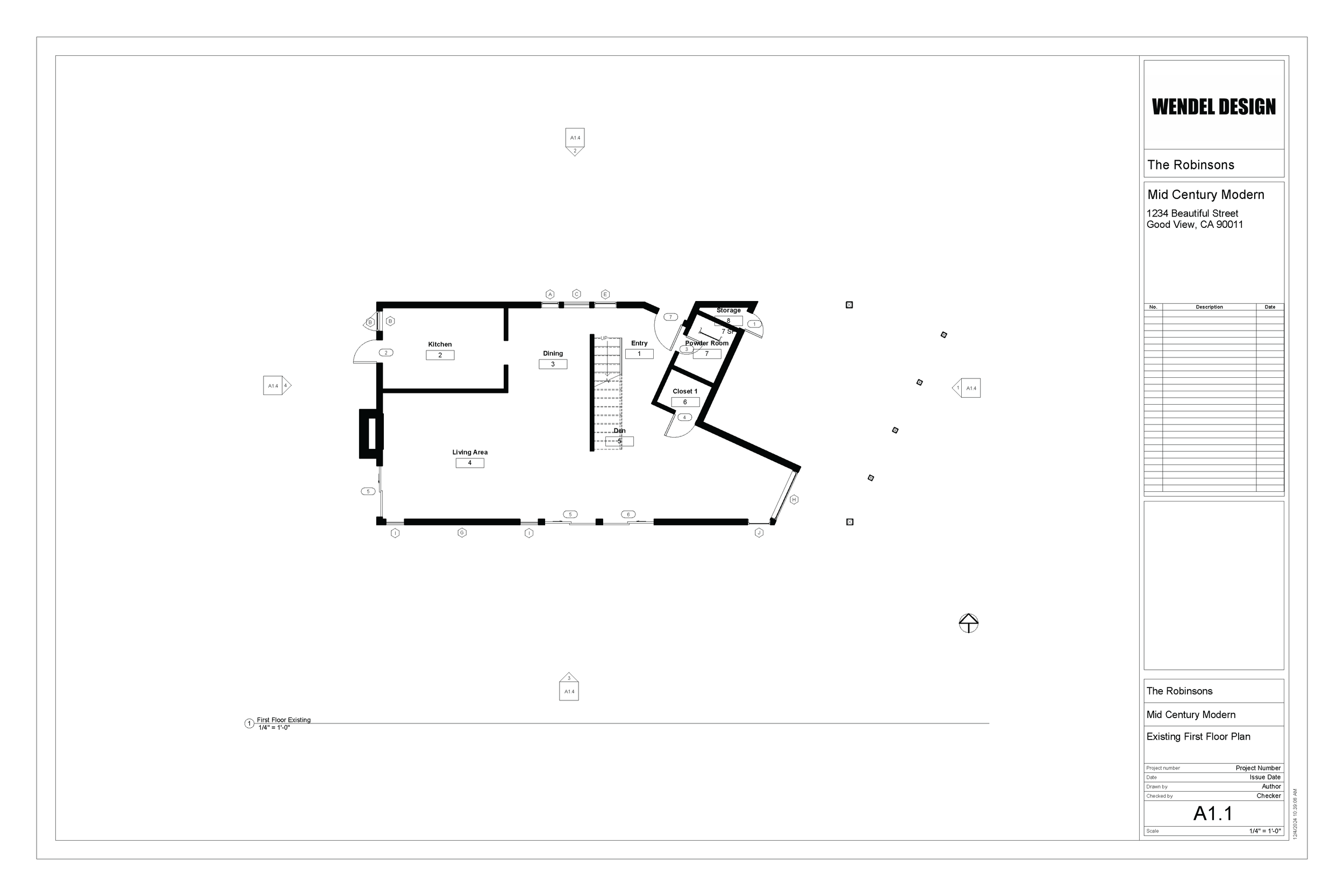

Existing First Floor Plan

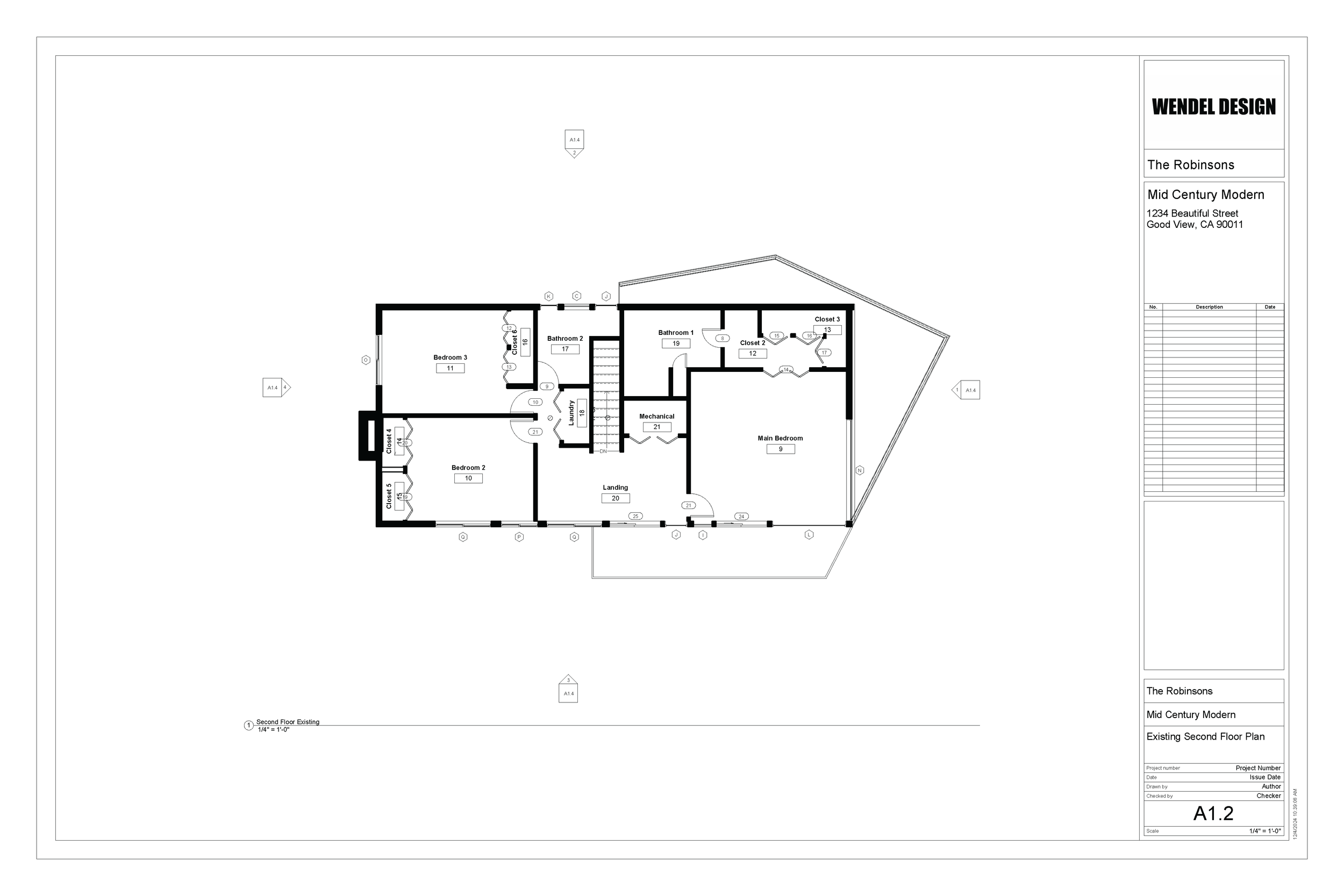

Existing Second Floor Plan

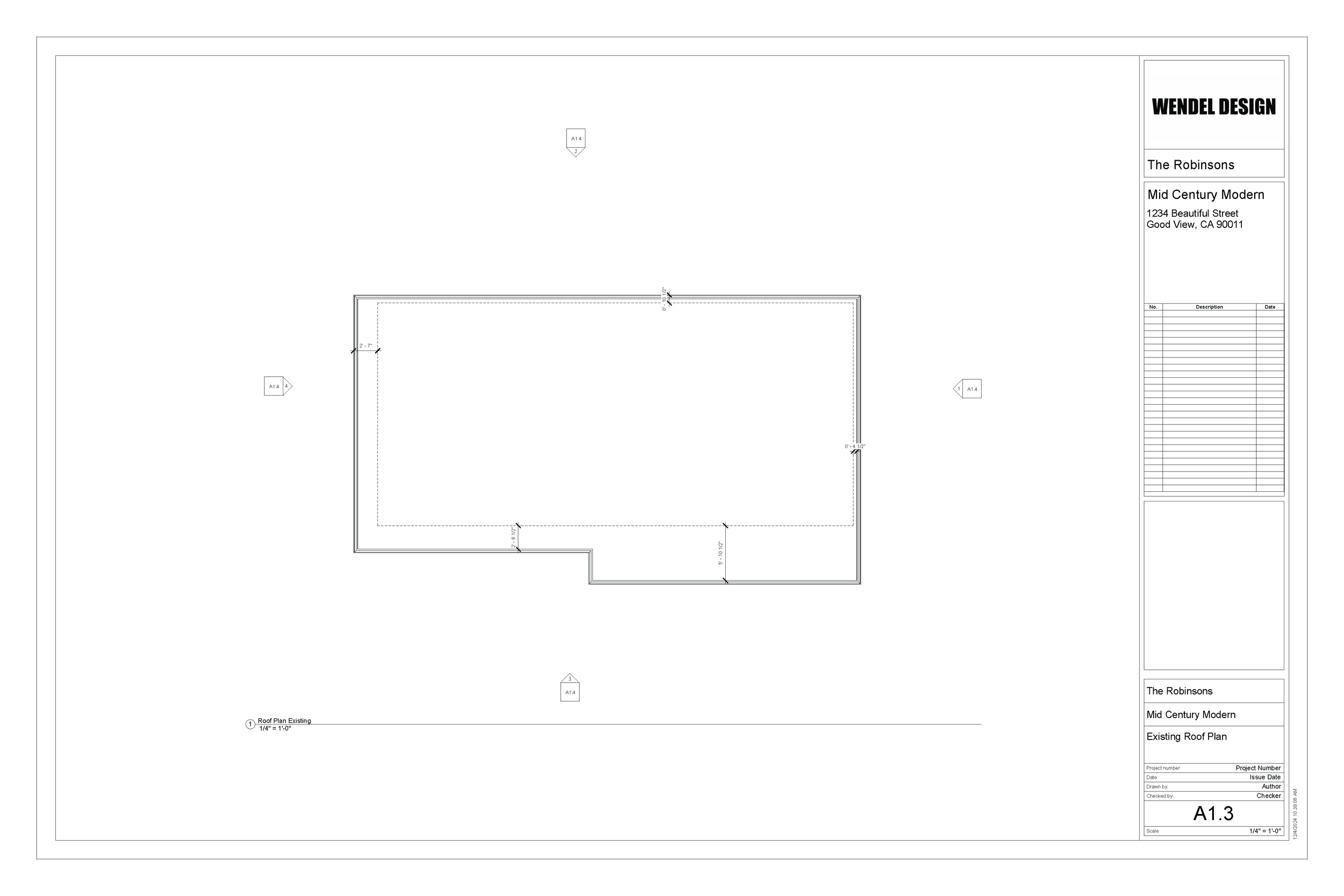

Existing Roof Plan

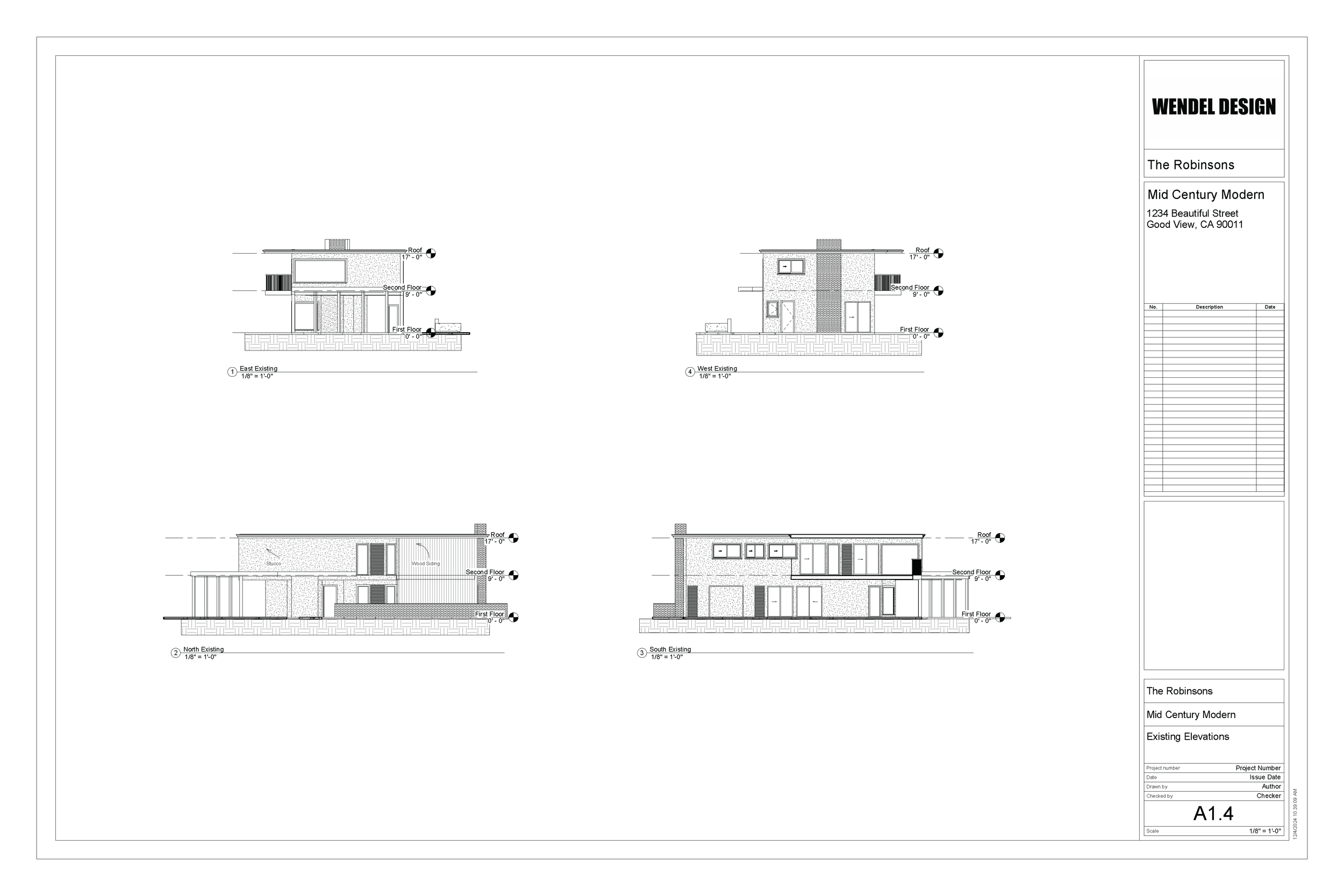

Existing Elevations

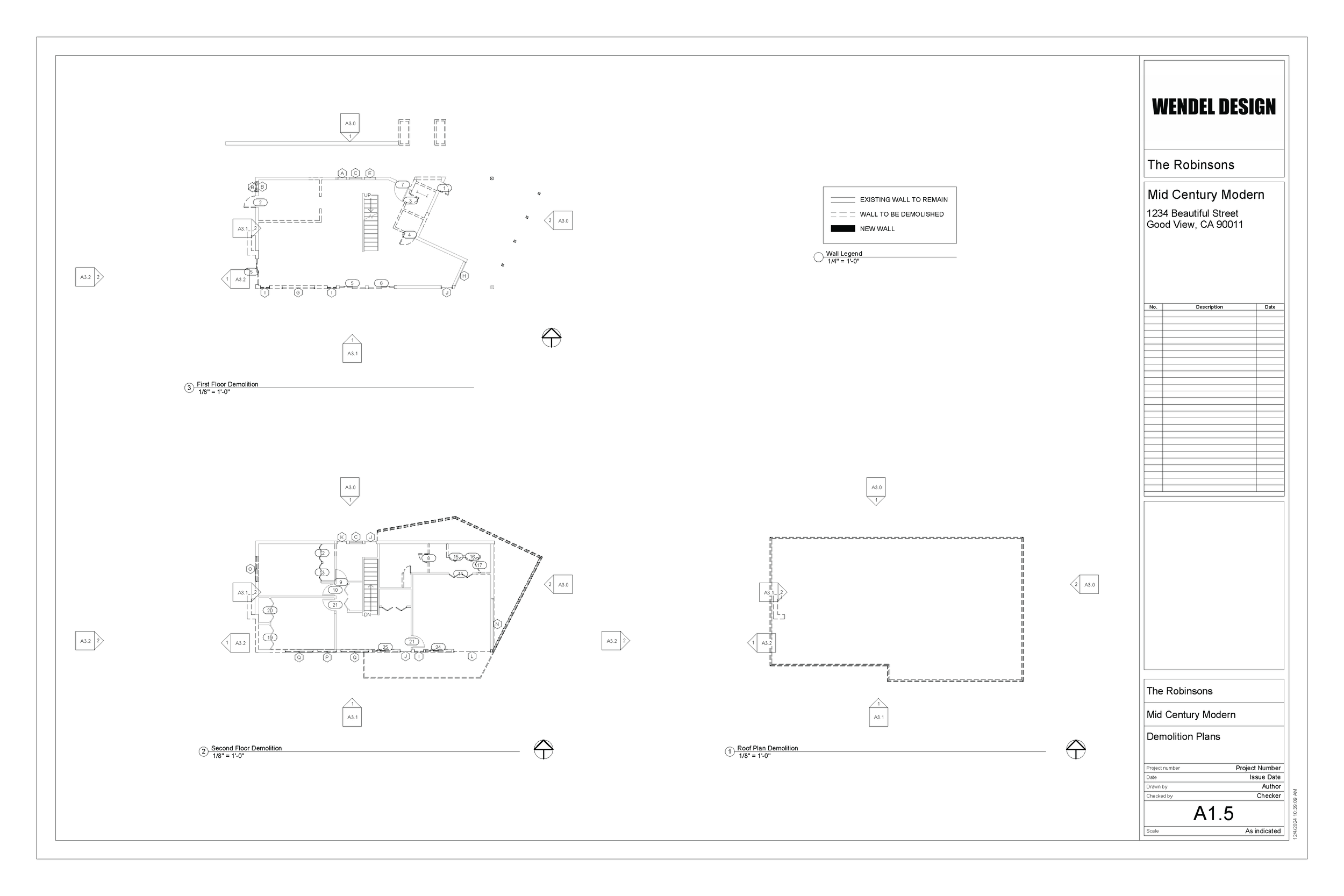

Demolition Plans

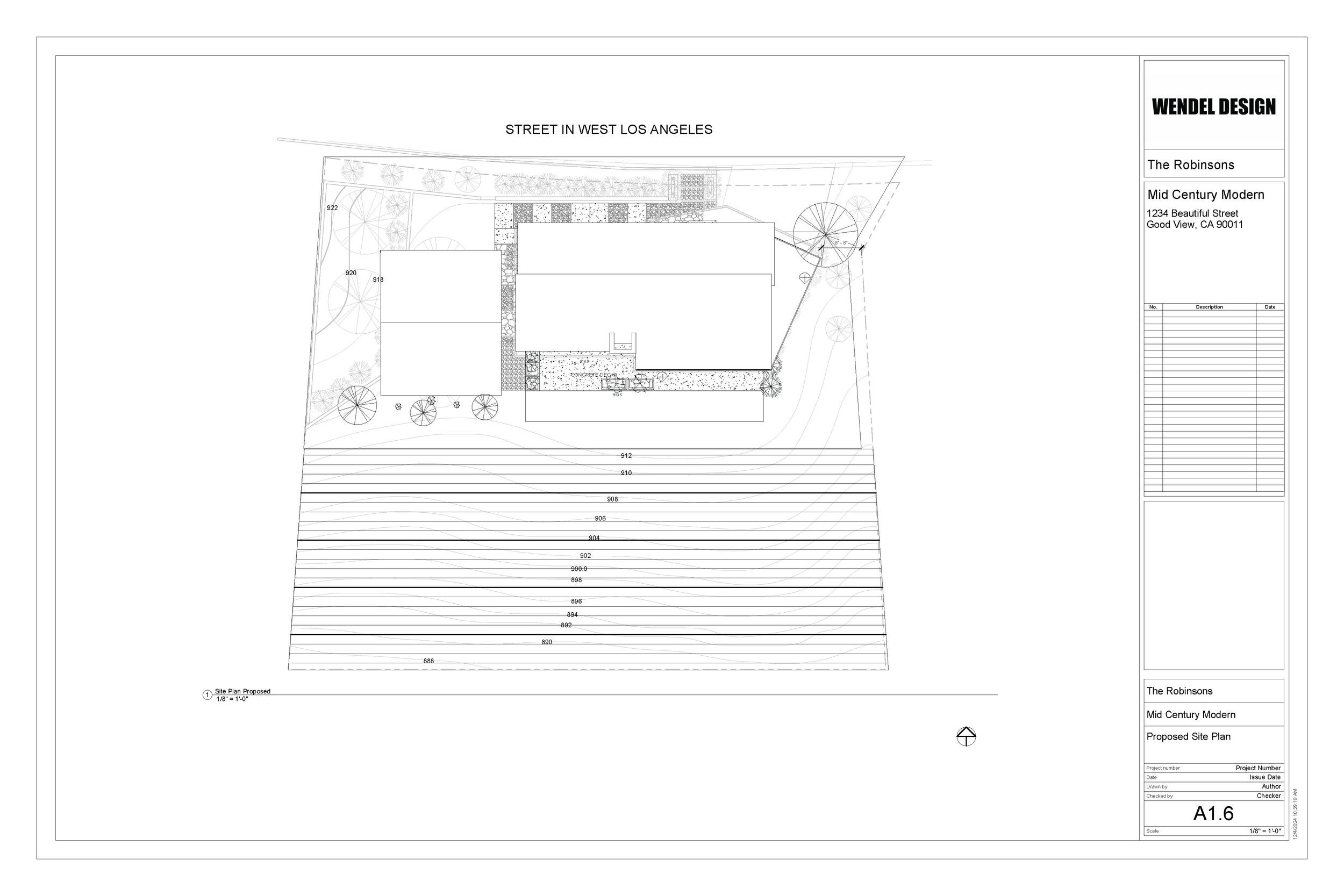

Proposed Site Plan

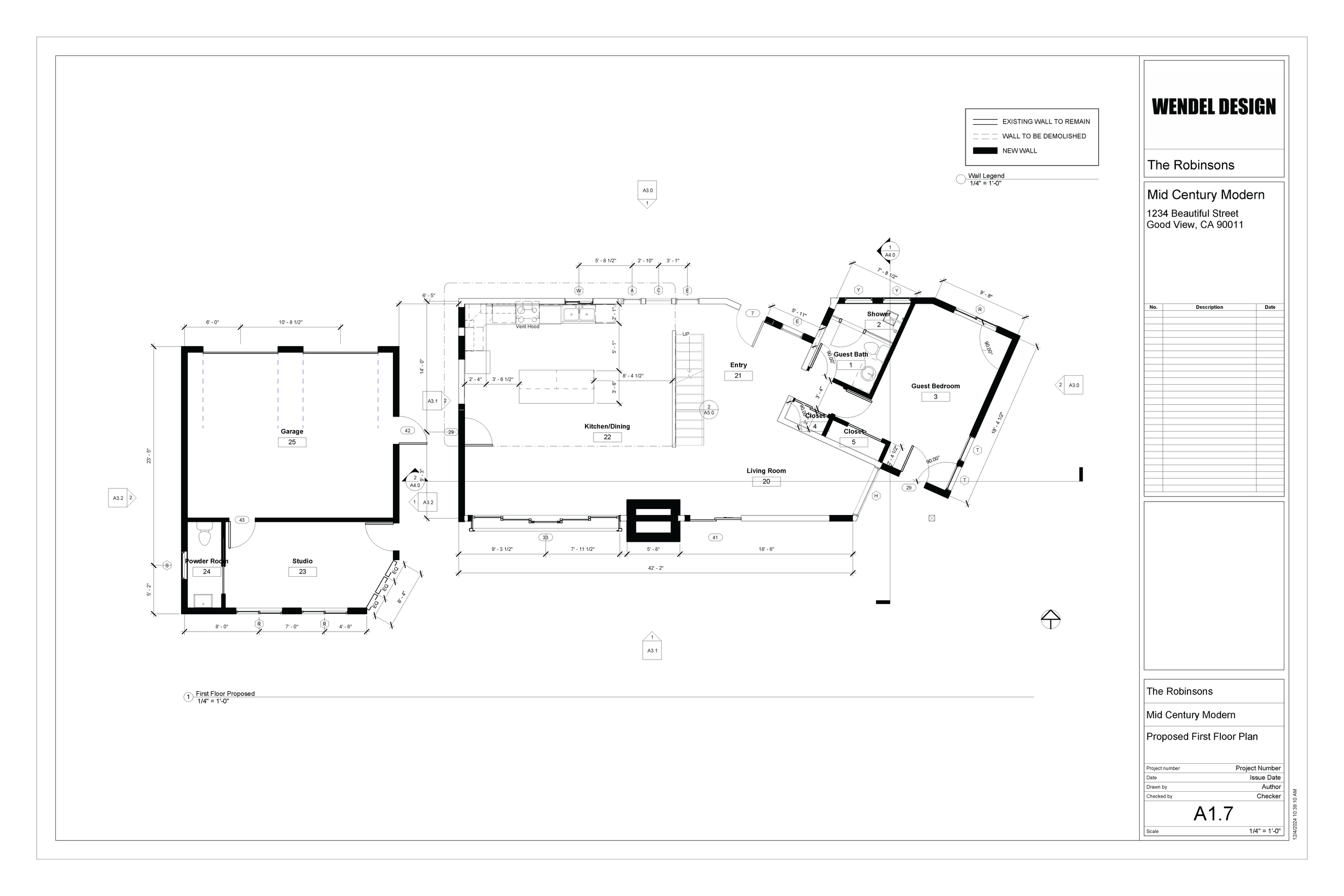

Proposed First Floor Plan

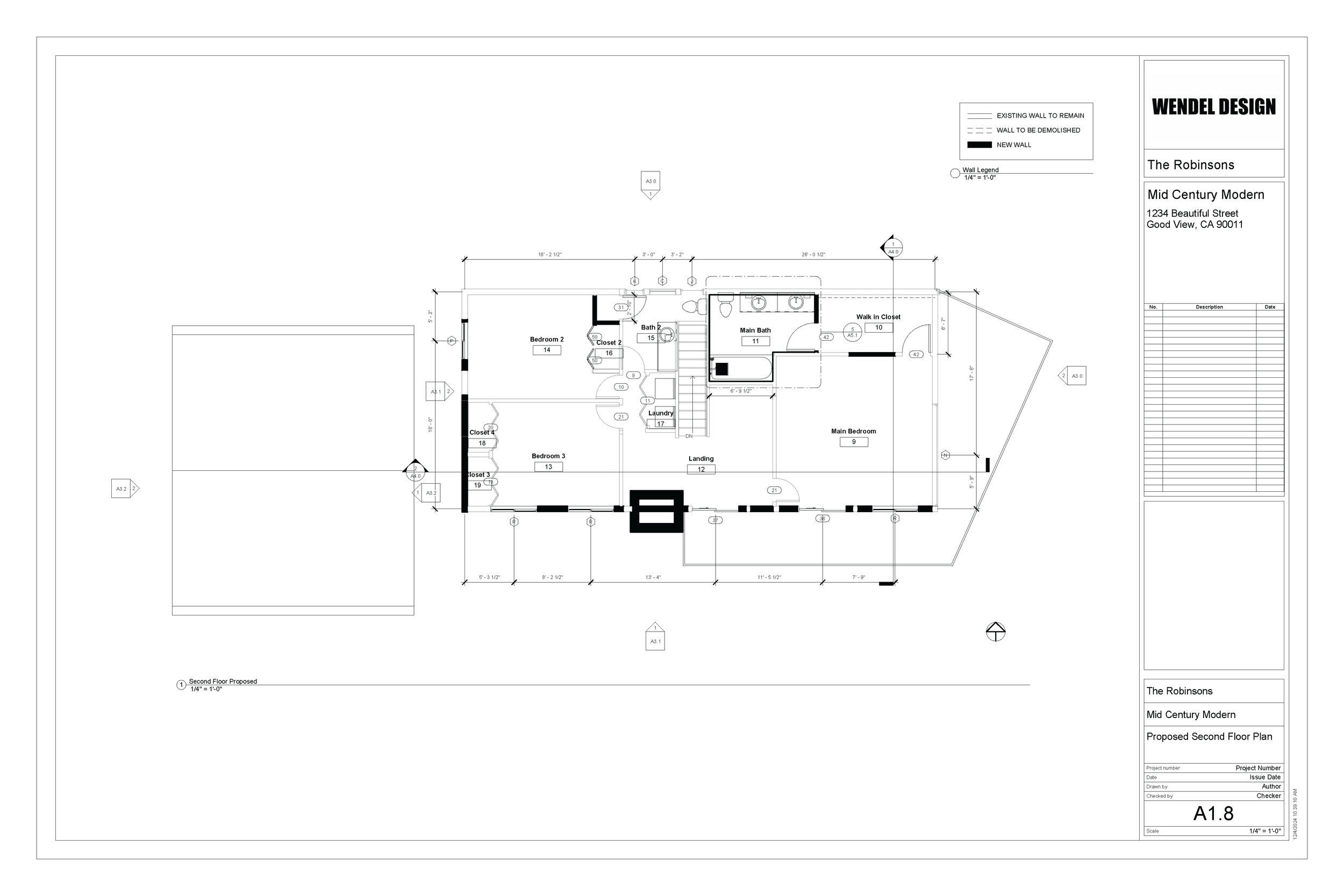

Proposed Second Floor Plan

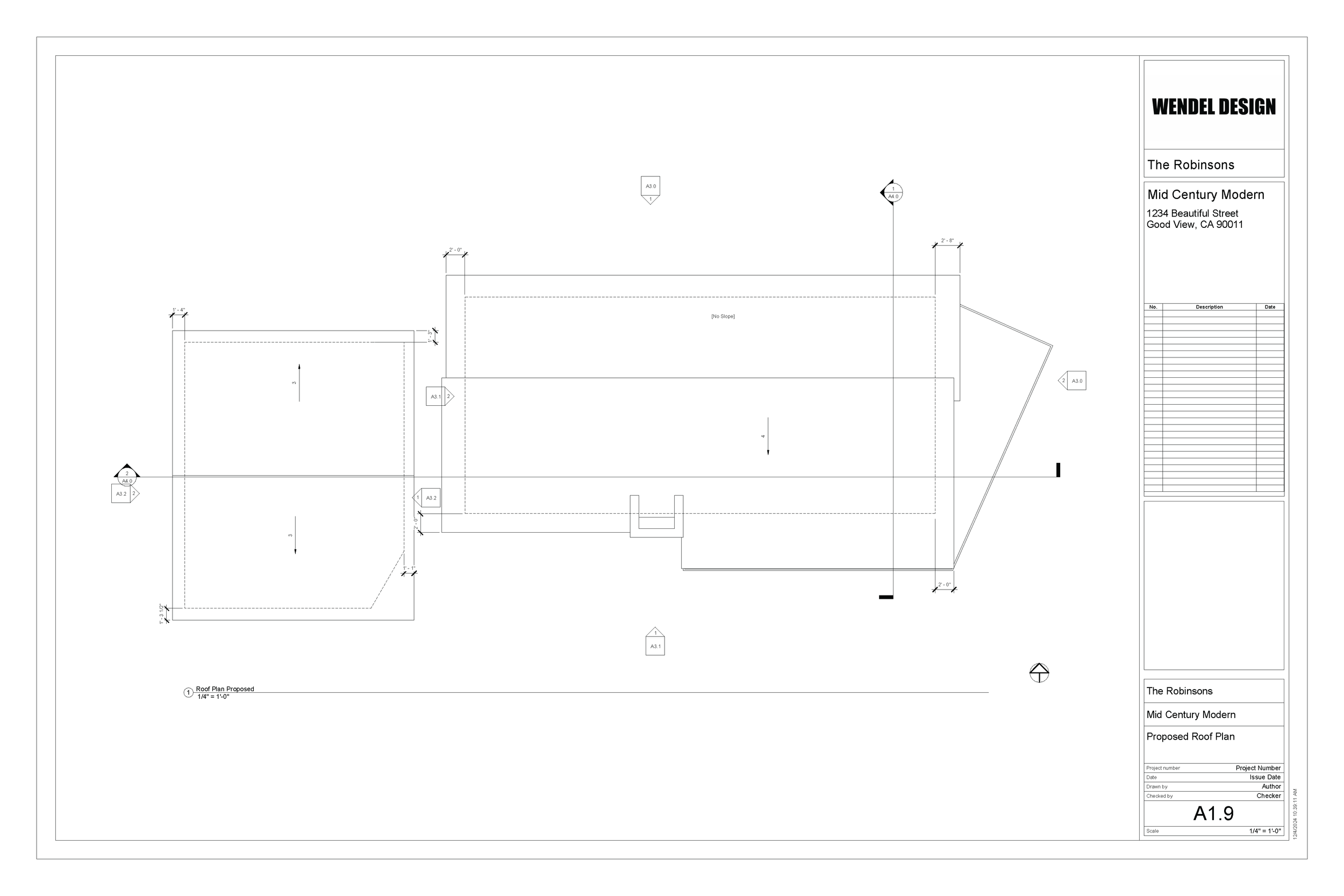

Proposed Roof Plan
First Floor Reflected Ceiling Plan

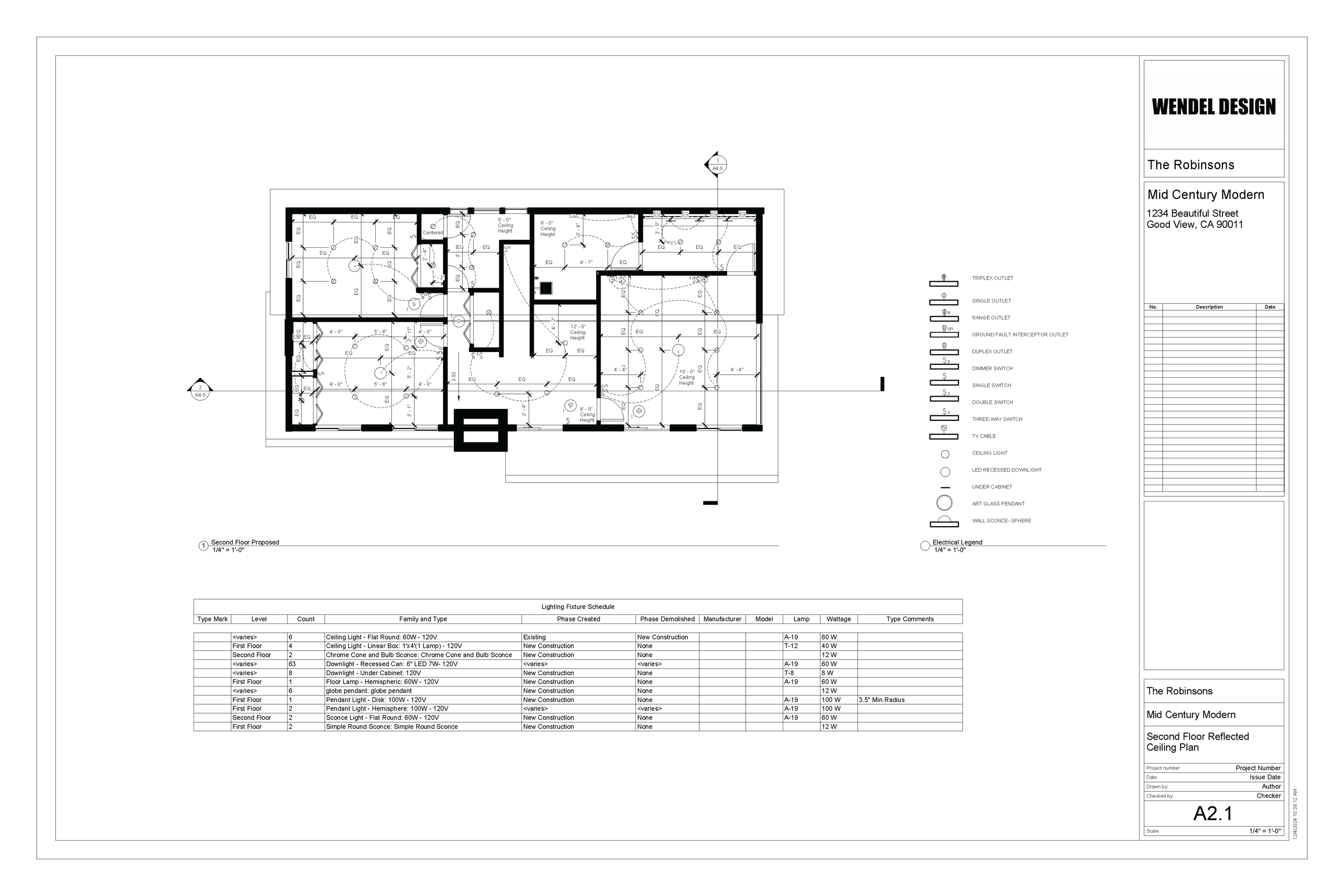

Second Floor Reflected Ceiling Plan

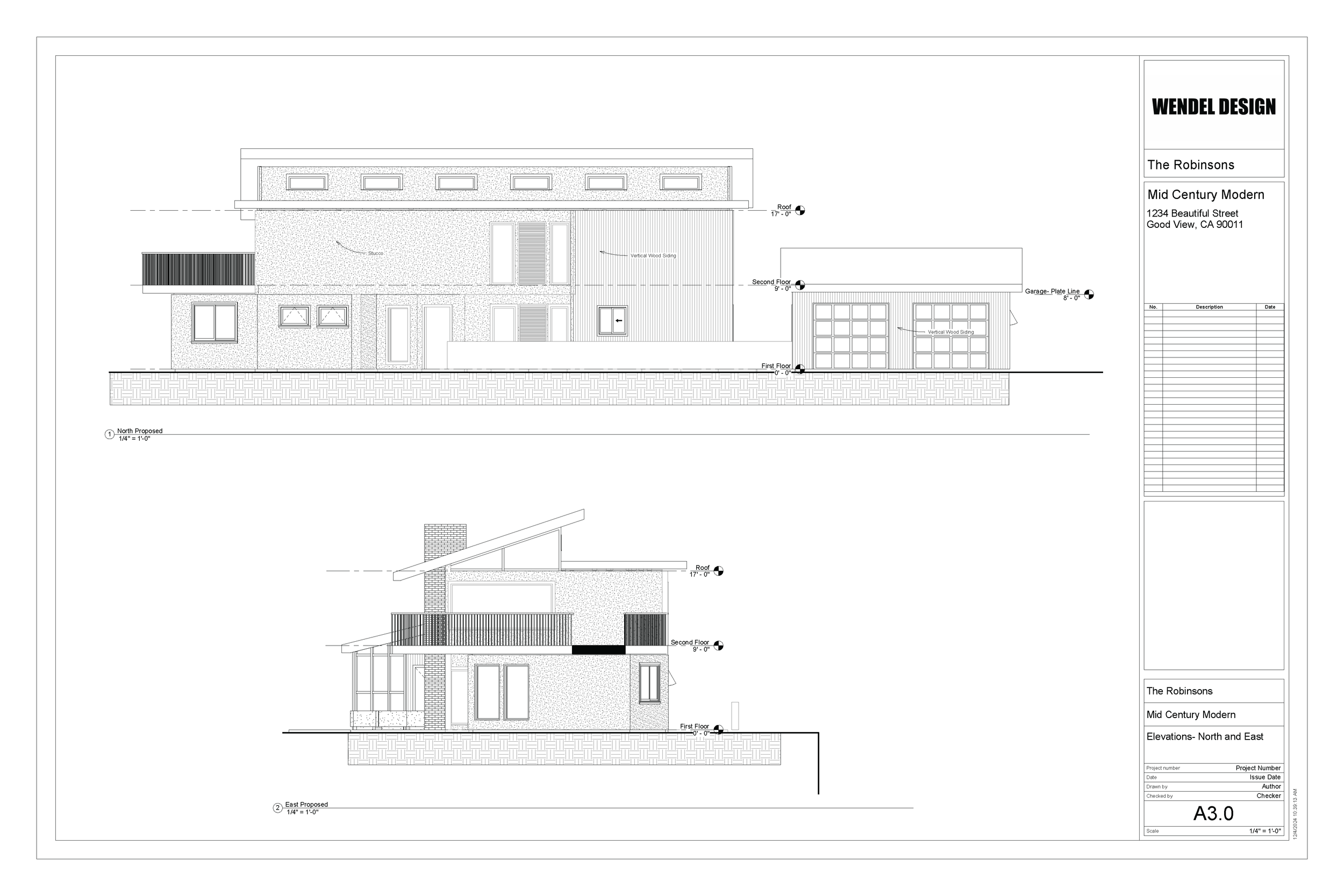

Proposed Elevations - North and East

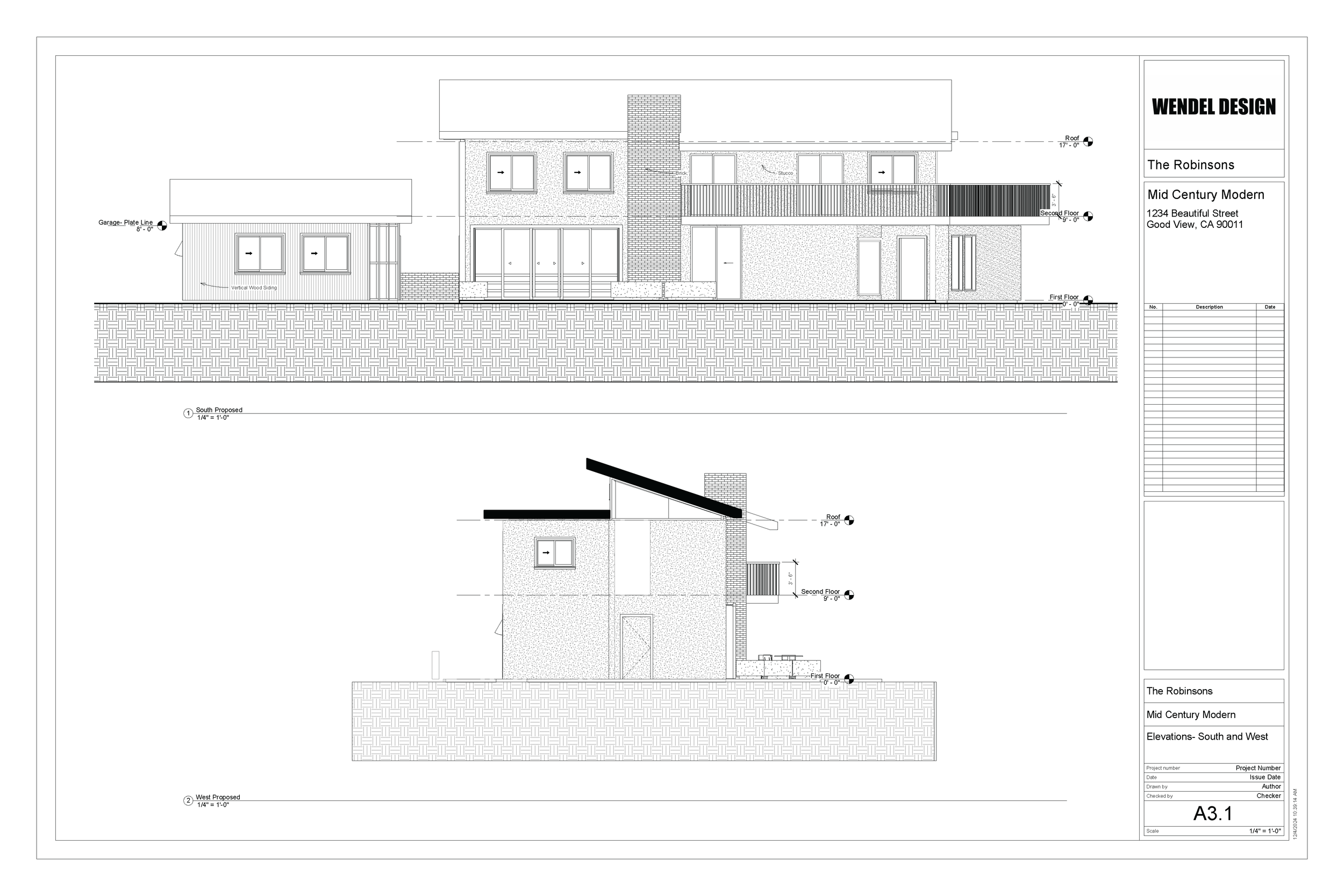

Proposed Elevations - South and West

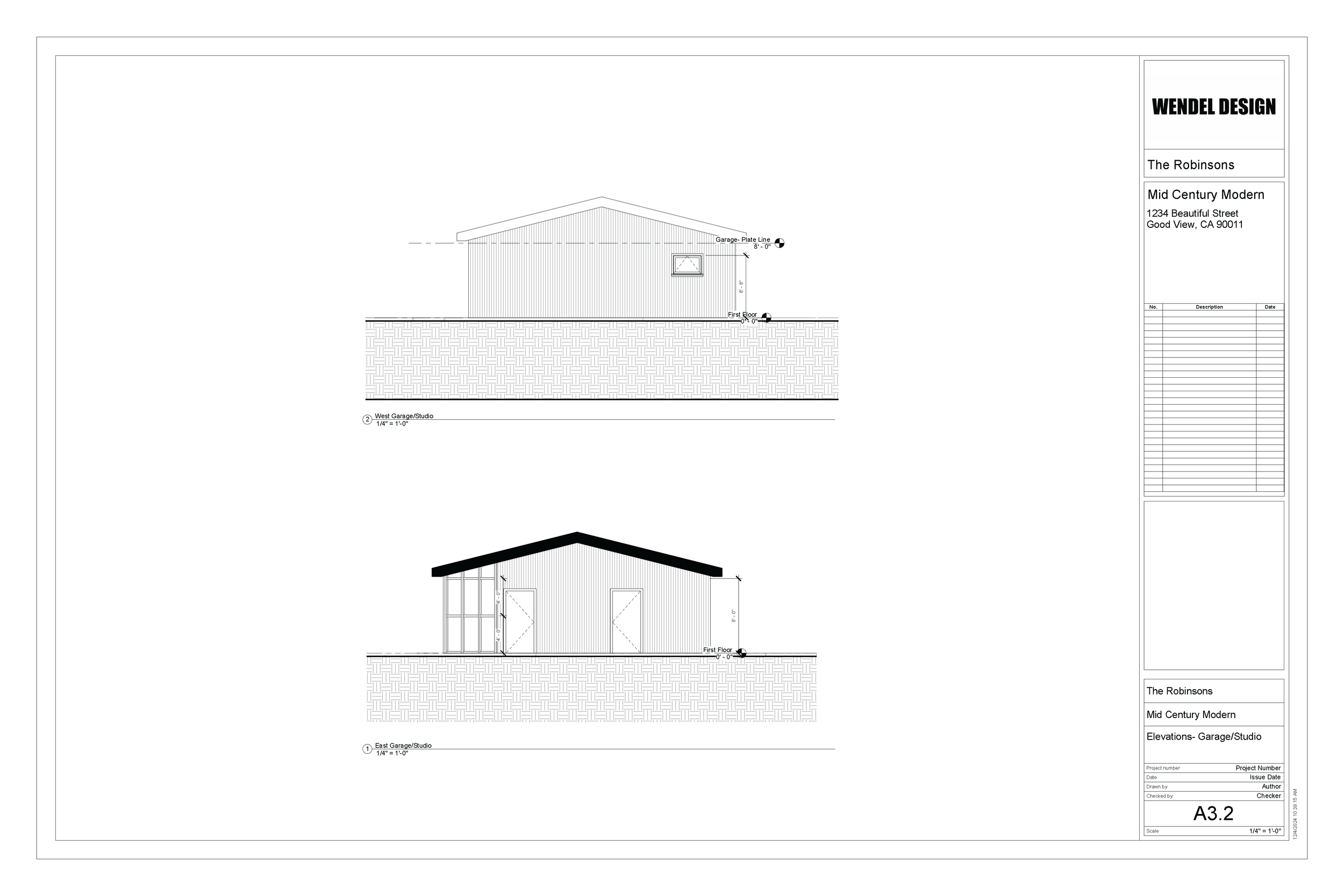

Proposed Elevation - Studio/Garage

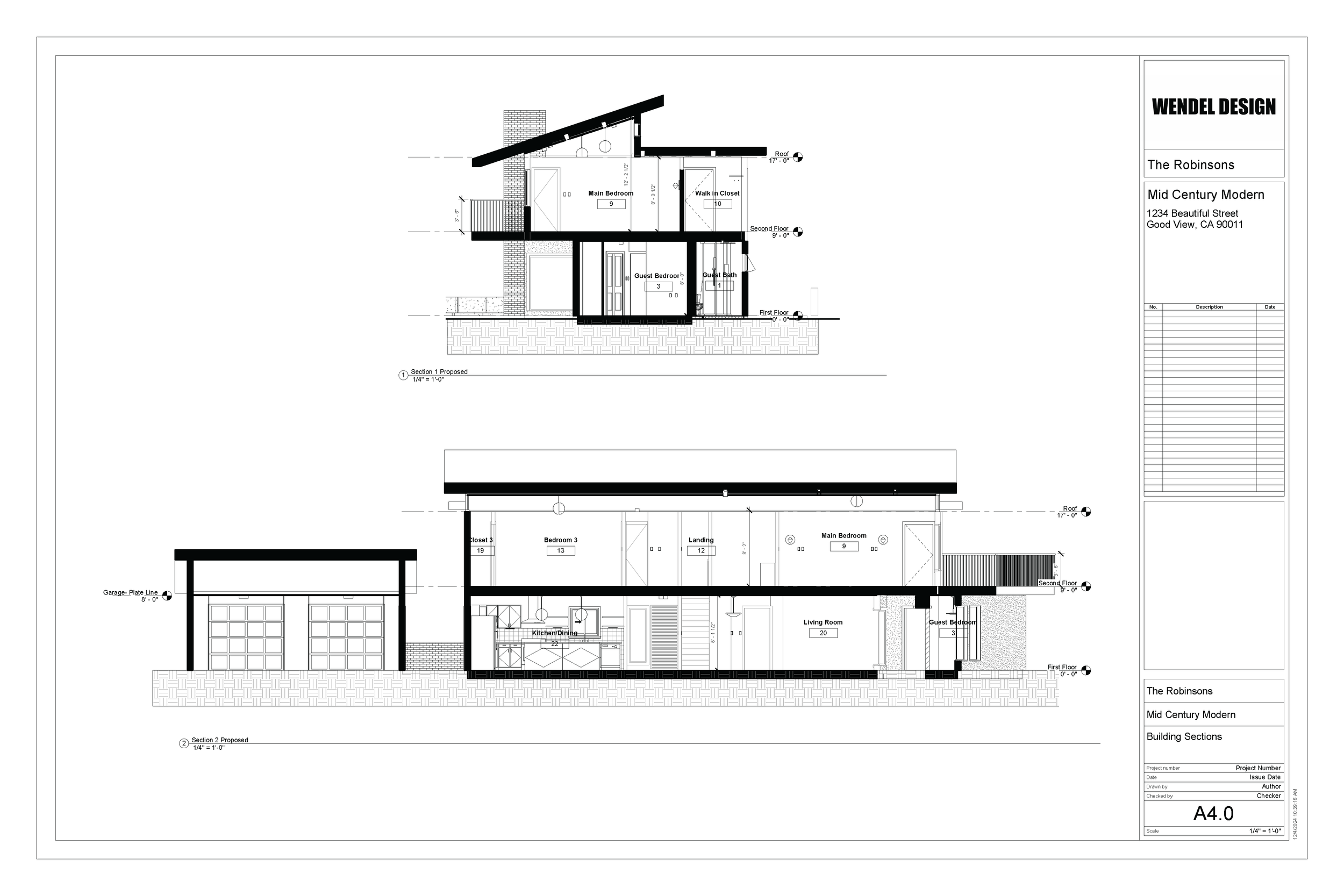

Proposed Building Sections

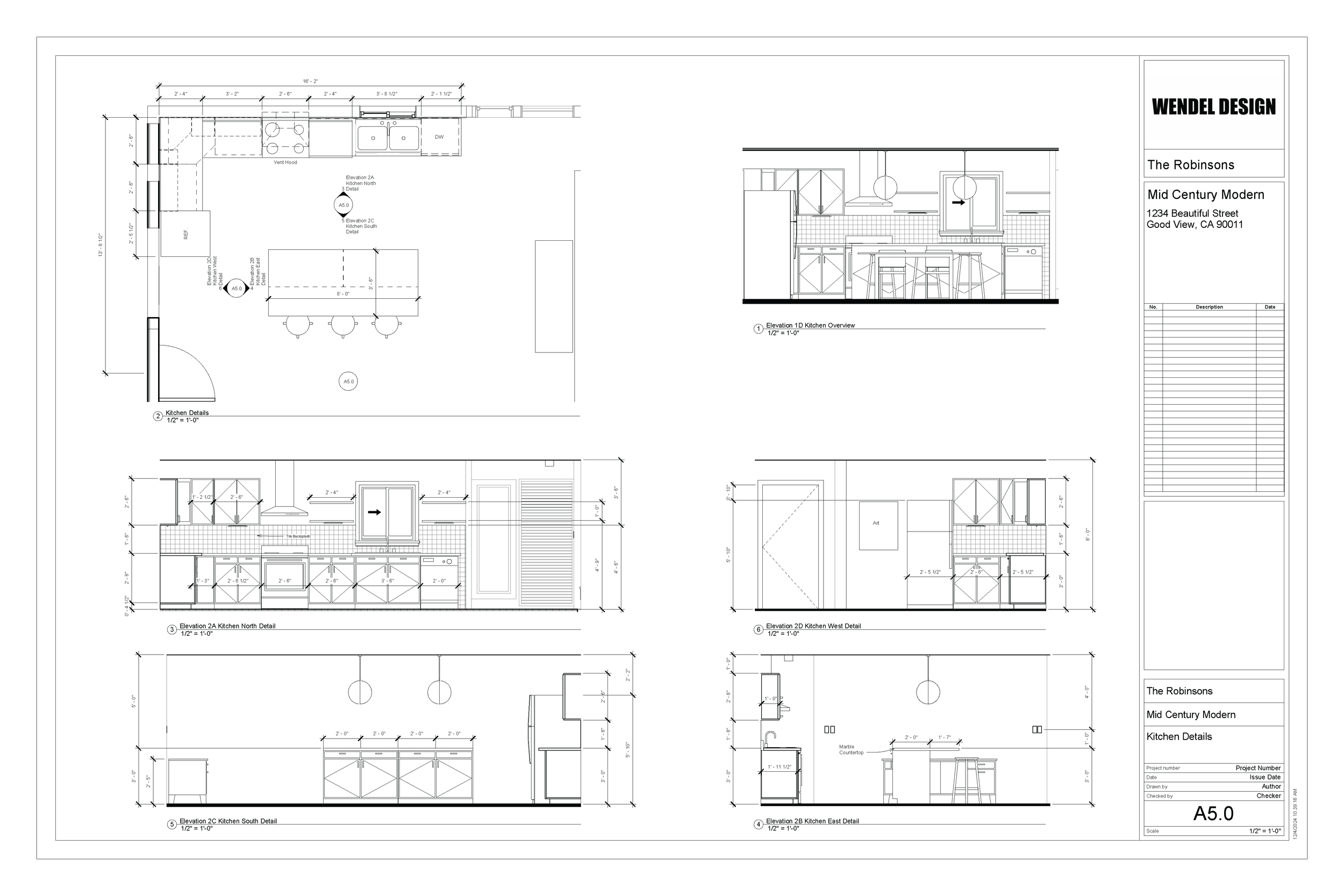

Proposed Kitchen Design

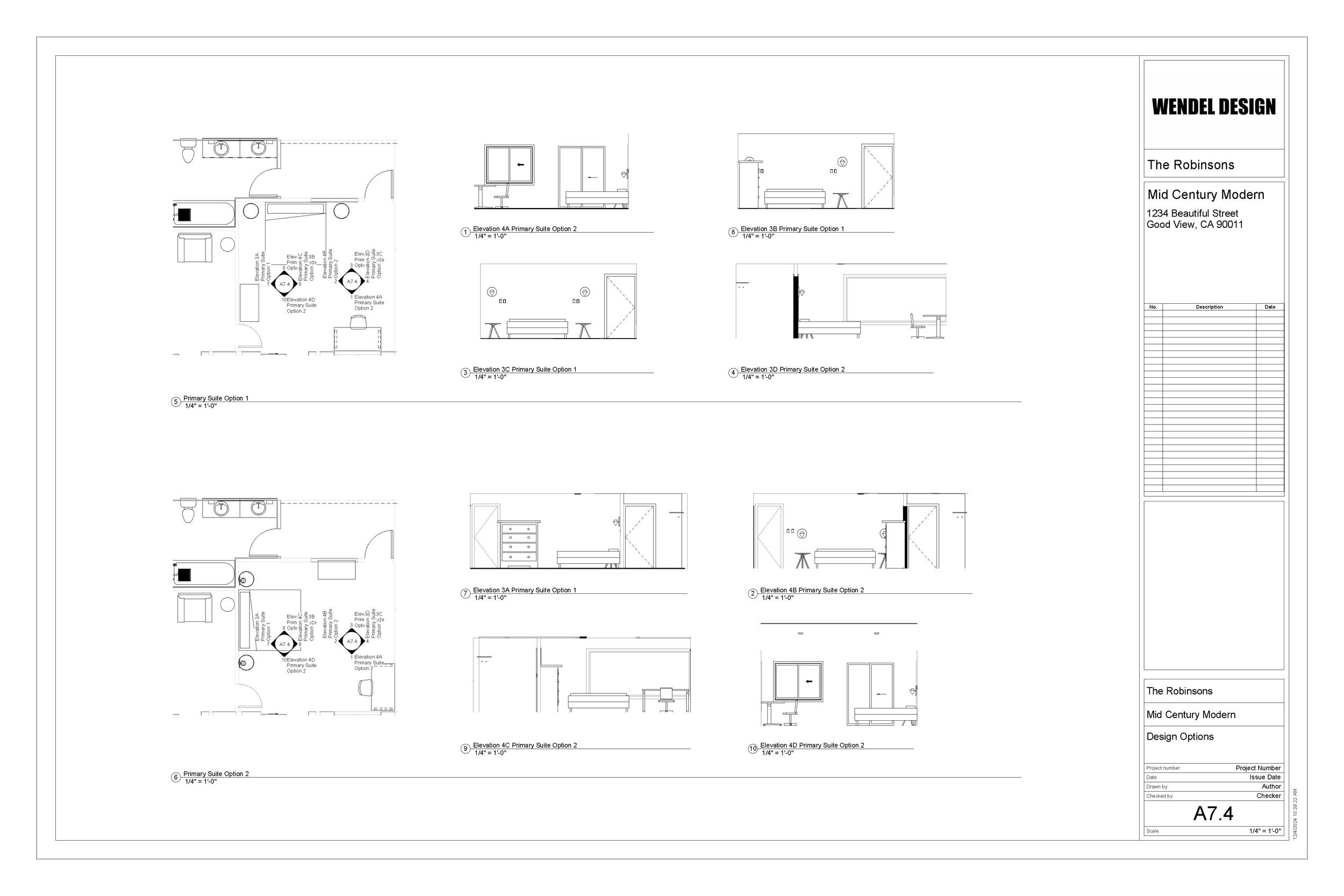

Primary Suite - Design Options

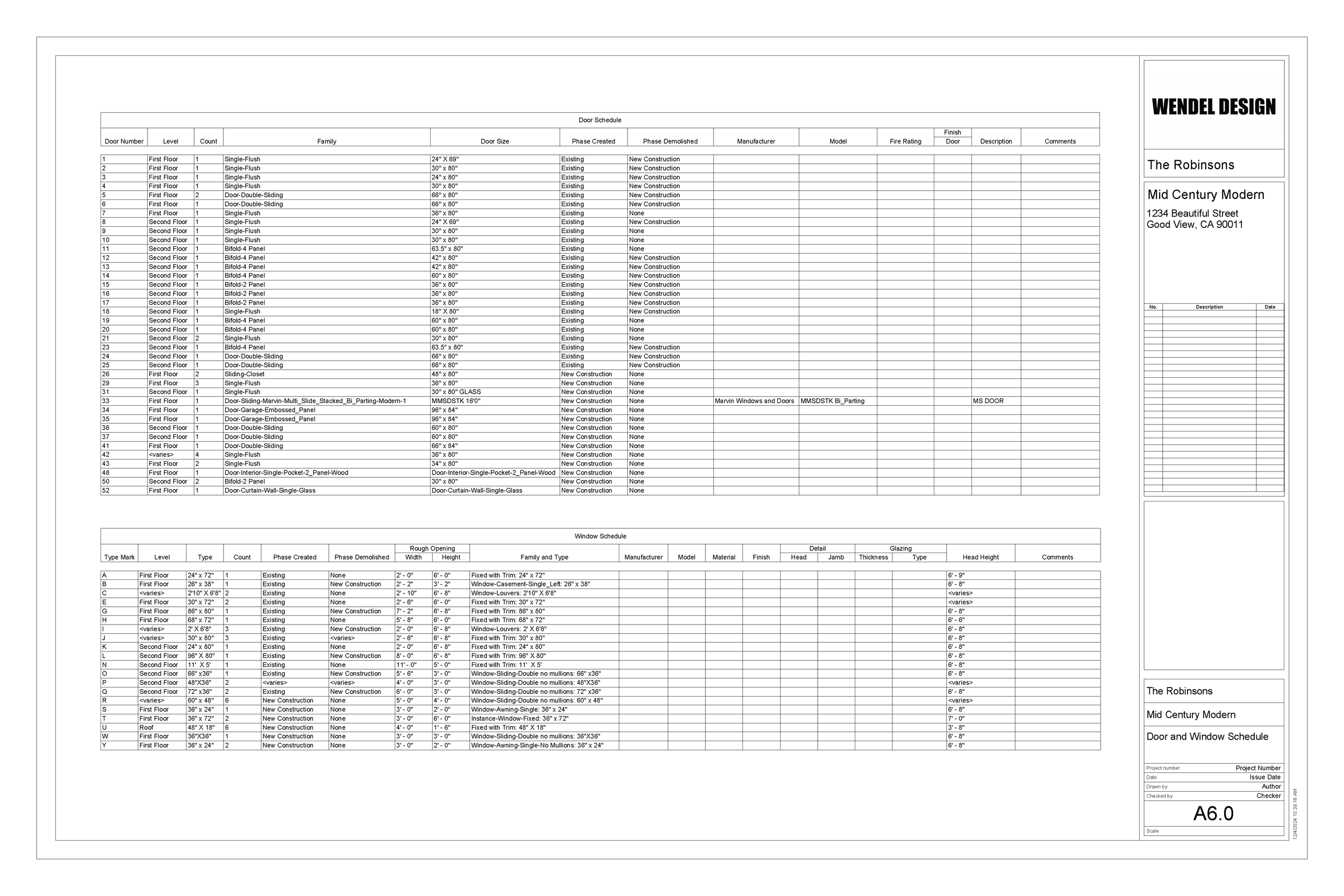

Door and Window Schedule

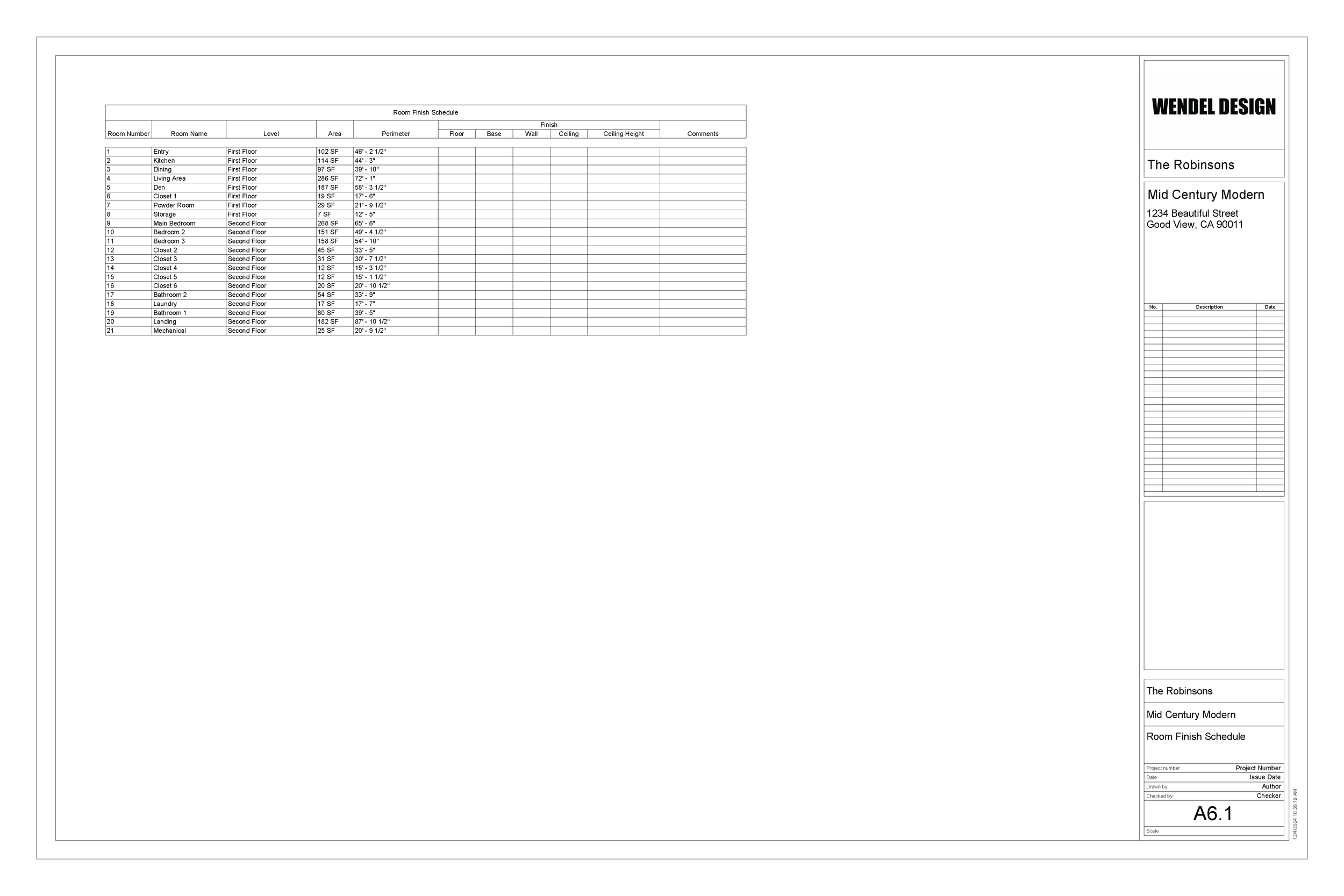

Room Finish Schedule - TBD
First Floor Furniture Plan

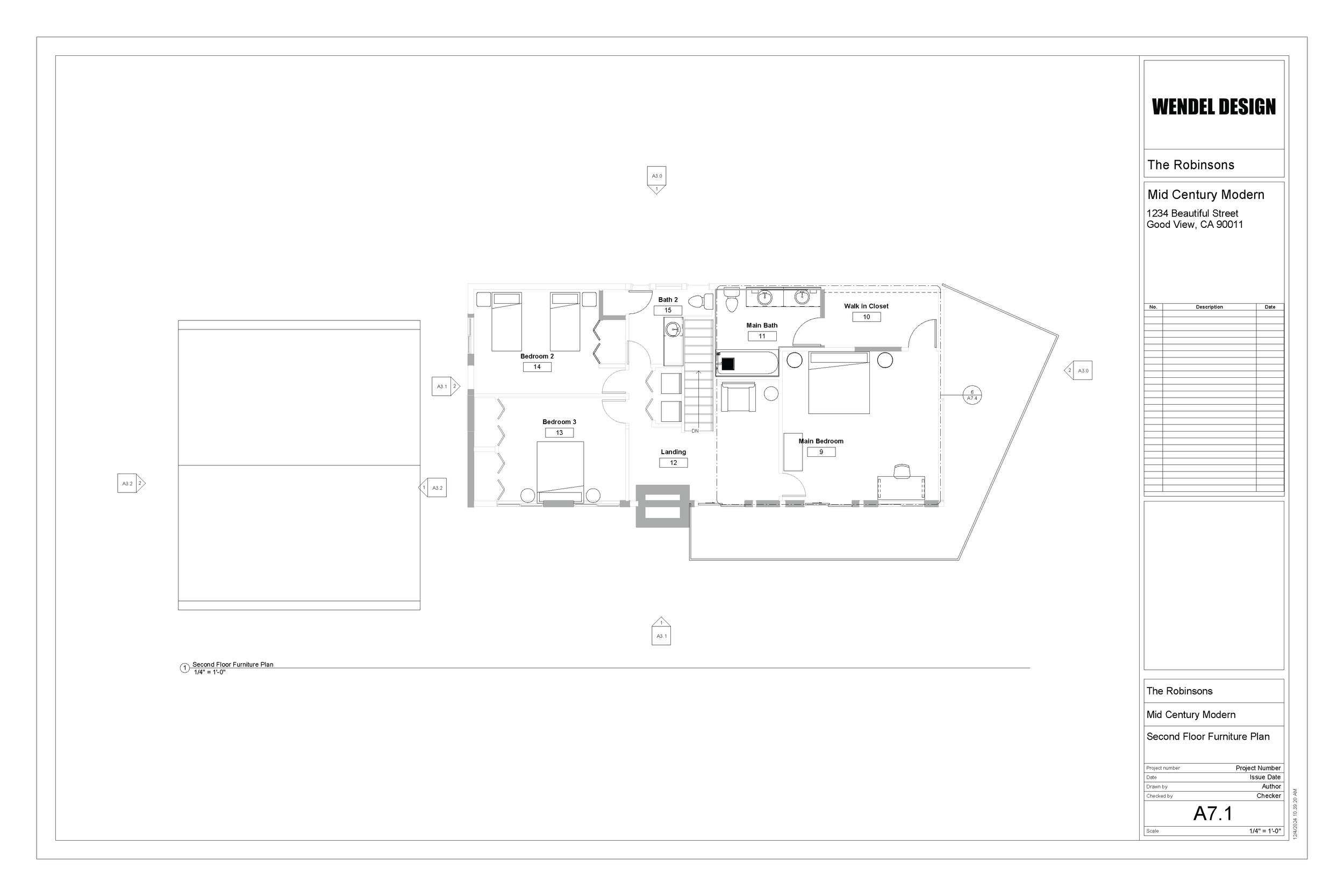

Second Floor Furniture Plan

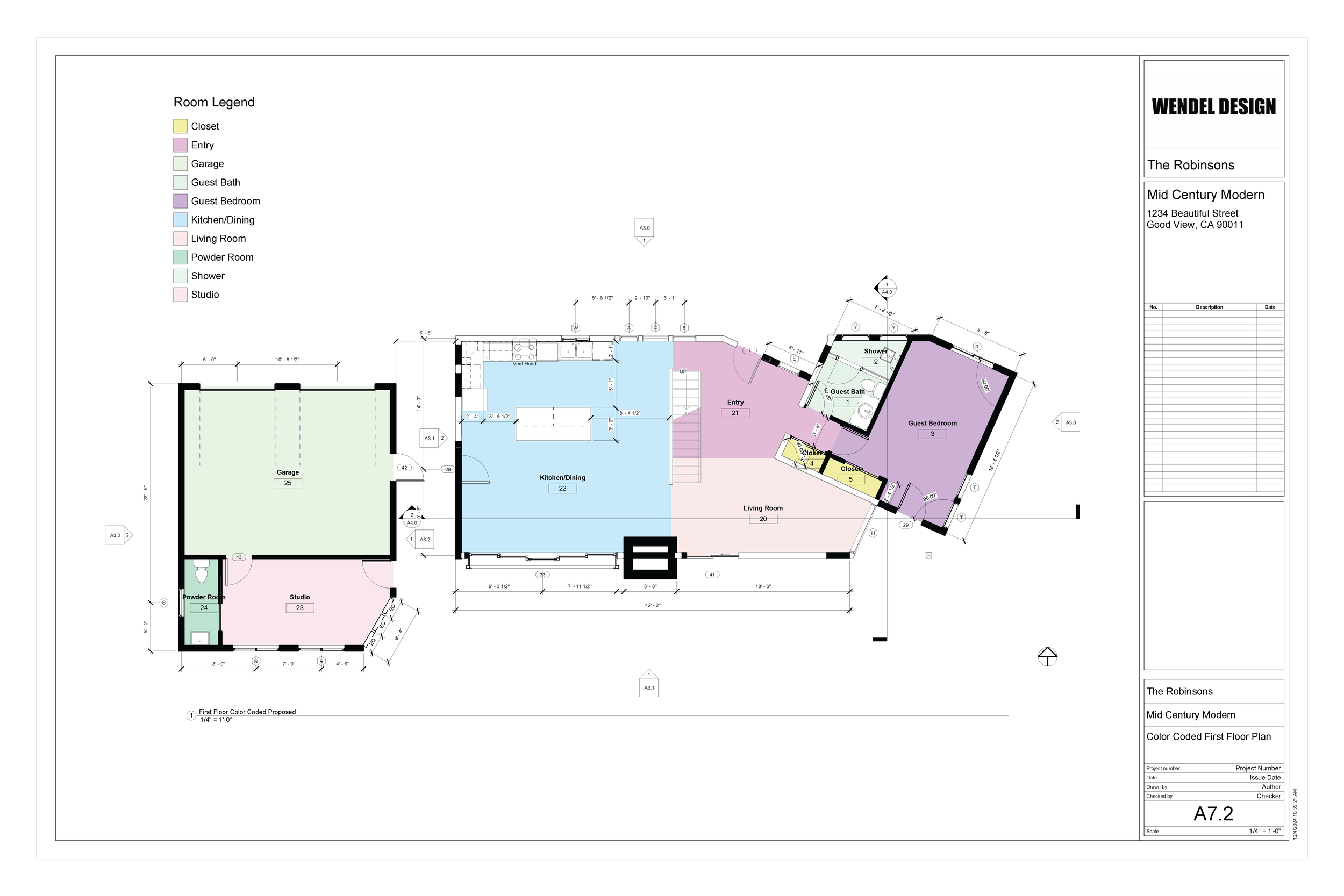

Color Coded - First Floor Plan

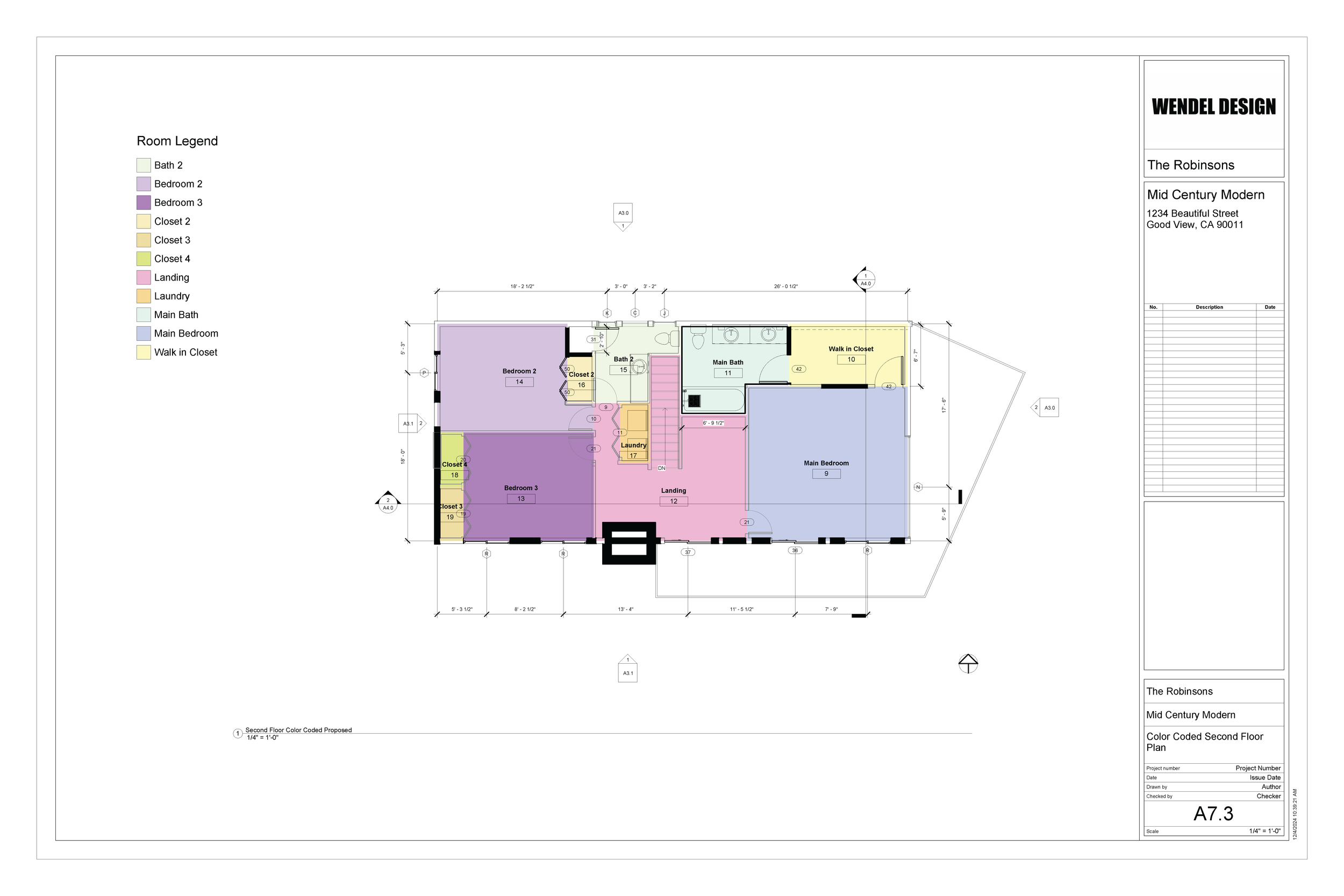

Color Coded - Second Floor Plan
3D Renderings
